uv-lamp-vutek-gs

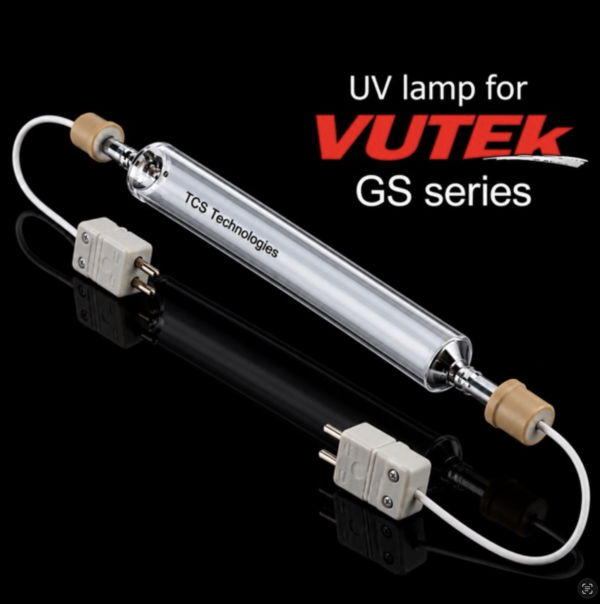

UV lamp for Vutek GS Series

$225.00

If you are looking for replacement UV curing lamps that are 100% compatible with Vutek GS Series printer, your search is over.

TCS Technologies manufactures a complete line of replacement digital UV curing lamps for all Vutek printers. Our GS series lamp comes complete with custom OEM ceramic connector (ceramic plug). It connects flawlessly, providing high UV output and predictable life. See connector — plug picture below

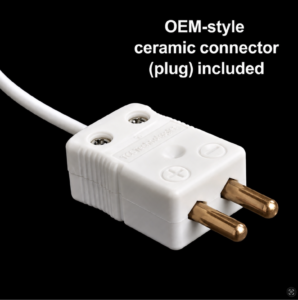

Vutek-lamp-connector-plug
Ceramic electrical connector used with Vutek UV lamp

Why risk problems with Far Eastern lamps, deal directly with a USA manufacturer. You will not find a better value than TCS Technologies.

Vutek printer models include: GS Series * GS2000 * GS2000 Pro * GS3200 * GS3250 * GS3250R * GS5000R

Vutek-logo
Company logo Vutek



Add to wishlist
Categories: , , Tags: , , , , , , , , , , ,

Description

TCS Technologies manufactures American-quality second-source UV curing lamps for Vutek GS Series printers. We offer a cost-effective alternative to the EFI Vutek OEM product.

made-in-USA banner
Made in the USA – gold 3D quality render on the wall background with soft shadow.

Technical specifications

  • Lamp part number:   Vutek GS Series
  • Arc length:                8 1/4” (210 mm)
  • Overall length:          12 ½” (319 mm)
  • Lamp output:            enhanced mercury for inkjet
  • End cap:                   ceramic
  • Wire termination       custom ceramic with copper pins
  • 100% compatible with the original equipment
  • Made in USA by TCS Technologies
UV-output-graph-mercury
UV output graph of mercury photopolymer exposure lamp. TCS Technologies

Tech tip

Vutek printers use two (2) lamps, one on each side of the carriage. To reduce gloss banding and maintain equal UV dosage, replace both UV lamps at the same time.

Tech Tip

During lamp changeover, always inspect the quartz plate for signs of misting ink or dust. Clean or replace as needed

Quartz-plate-for-UV -curing
Quartz plate for UV applications

We manufacture quartz plates for Vutek GS Series printers. Typical part number includes 45074549. Price is reasonable and quality exceeds OEM component thanks to our use of General Electric USA quartz.

Do not be fooled by listings on the internet offering quartz plates at bargain-basement prices. There is no comparison between actual USA quartz and Far Eastern or Indian sourced material.
